MPS ASIA - C1X Sport Line​

​

​

​

​

The new Sport Line is designed to become the most portable, lightweight and complete filling system ever created.

The C1X is built with an innovative system that significantly reduces air consumption during the filling operation.

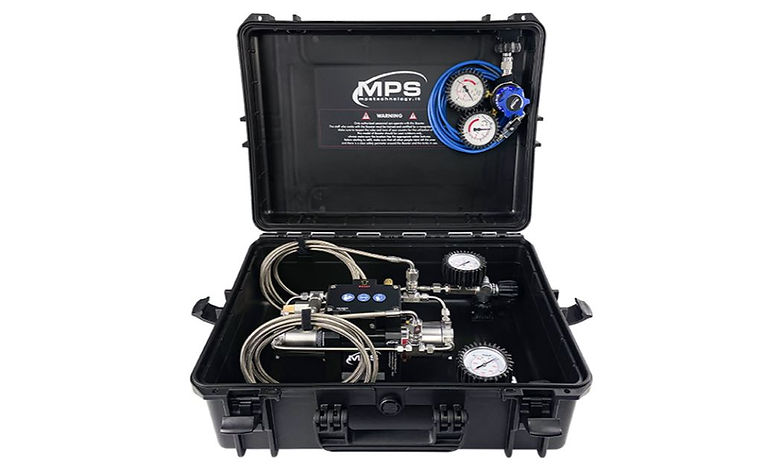

C1X SPORT LINE.JPG

TECHNICAL DATA

AIR DRIVEN GAS BOOSTER DOUBLE ACTING - SINGLE STAGE

​

TRANSMISSION RATIO: 1:39

MAX DRIVE AIR PRESSURE: 6/8 Bar - 87/116 psig

DISPLACEMENT: 2 x 9 cc

MAX OUT PRESSURE: 230 Bar - 3335 psig / 310 Bar - 4500 psig

MIN SUCTION PRESSURE: 5 Bar

AIR DRIVE INLET CONNECTION: Micro Quick Connection 1/4"

AIR DRIVE REGULATOR: HP and LP gauges, Speed Adjust Valve, 3 m Tube with Micro Quick Connection 1/4", DIN 300

AIR DRIVE HOSE LENGTH: 3 m

GAS INLET CONNECTION: 3 m Stainless Steel Braid Hose, Filter, Needle Valve with Slow Purge, 63 mm 0-400 Bar Gauge, DIN 300 connection

GAS OUTLET CONNECTION: 3 m Stainless Steel Braid Hose, Needle Valve with Slow Purge, 63 mm 0-400 Bar Gauge, DIN 300 connection

WEIGHT: 13.5 Kg

DIMENSIONS: 55.5 x 42.8 x 21.1 cm

MAIN FEATURES:

  • OXYGEN SERVICE

  • Technopolimer Water/Dust proof Transport Case

  • All-in-one filling system

  • Proportional Relief Valve

VERSIONS

C1X Light 230 Bar

GBS.09.39.X.230

C1X Light 310 Bar

GBS.09.39.X.310

EXAMPLES OF USE

  • CCR Divers

  • Technical Divers

  • Small groups of divers
